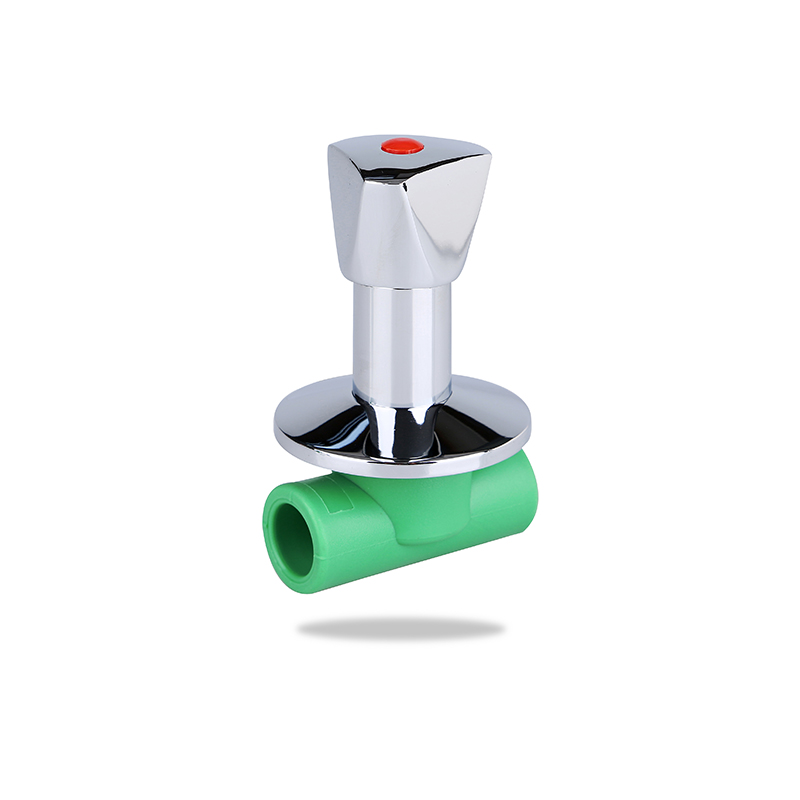

PPR Stop Valve
THE ZHSU PPR Stop valve is an upgraded model of the ZHSU PPR globe valve, which is not only suitable for all openings and closures like PPR globe valves but also allowed to regulate or throttle,PPR stop valve also known as concealed valve, a built-in valve in a shower enclosure that is hidden beneath the tiling. The chrome-plated plate and knobs are the only two visible parts, the rest is hidden within the wall, the opening and closing parts of the PPR stop valve is a plug-shaped disc with flat or conical sealing surfaces. The disc moves in a straight line along the center line of the fluid. The movement of the valve stem is in the form of a lifting rod (stem lifting, hand wheel not lifting), and a lifting rotating rod (hand wheel and stem rotating lifting together, nuts set on the valve body), manufactured according to German DIN standards with sizes ranging from 20mm up to 160mm,100% shell test and water sealing test before delivery, quality guaranteed.
send inquiry
|
Item Name |
PPR stop valve |
|
Size |
20-32mm |
|
Pressure |
Pn 1.6Mpa |
|
Body Material |
Polypropylene random, PPR beta |
|
Trim |
Brass |
|
Color |
Green, gray, white, purple |
|
Connection |
Hot melting |
|
Standard |
DIN8077, DIN8078 ,ISO16962 |
|
Item name |
Product Code |
Size (mm) |
Packing (pc/ctn) |
Vol per Ctn (cbm) |
Weight (kg/pc) |
|
PPR stop valve |
RVML20 |
20 |
24 |
0.0233 |
0.405 |
|
RVML25 |
25 |
24 |
0.0233 |
0.435 |
|
|
RVML32 |
32 |
20 |
0.0233 |
0.460 |
Related Products
Excellent product with exquisite craftsmanship
About Us
Shanghai Zhongsu Pipe Co., Ltd.
Shanghai Zhongsu Pipe Co.,Ltd established in 2004 with 1.01 billion registration capital, situated in Jinshan district of shanghai china, occupied 70000 square meters. ZHSU specialized in producing PPR pipe, antibacterial PPR pipe, anti UV PPR pipe, PP-RCT pipe, PE-RT pipe, HDPE pipe and fittings with various materials, adopted high technology production line to improve productivity and provide customer with fast delivery time. OEM PPR Stop Valve Manufacturers and Wholesale PPR Stop Valve Factory in China. In order to cooperate with national rural drinking water safety project, ZHSU adopted large diameter facility for PE production, our biggest PE pipe diameter reached DN1200mm at present, ZHSU has become one of the manufacturers in china who can produce such large diameter PE pipe.
We adopted German brand Battenfeld-cincinnati production lines for plastic pipes to organize production in strictly accordance with international standards, the procedure from raw material purchasing to finished product delivery is fully under monitoring, passed ISO9001, ISO14001 and OHSAS18001 certification because of perfect management. Wholesale PPR Stop Valve. Besides we were nominated as ”Shanghai famous brand products, Shanghai high-tech enterprises and Shanghai famous trademarks”.
Certificate Of Honor
Message Feedback
News
-
-
In order to avoid the problems of pipe blockage and leakage caused by long-term ...
READ MORE -
In cold regions, Beta PPR pipes usually have certain antifreeze properties, but ...
READ MORE -
Choosing the right HDPE Pipe For Gas to ensure the long-term stability and durab...
READ MORE -
HDPE pipes for water have become a preferred choice for water transportation du...
READ MORE
Product Knowledge
Are there any additives or enhancers in the PPR Stop Valve material to enhance its performance?
The specific composition of PPR Stop Valve materials can vary among , and formulations are often proprietary. However, certain additives or enhancers may be incorporated to improve the performance of PPR Stop Valves. Here are some common additives or enhancements that may be found in PPR materials:
Glass Fiber Reinforcements:
Glass fibers can be added to the PPR material to enhance its mechanical strength, rigidity, and resistance to pressure. Glass fiber reinforcement can contribute to the overall durability of the valve.
Mineral Reinforcements:
Minerals, such as talc or calcium carbonate, may be used as reinforcements to improve the stiffness and dimensional stability of the PPR material. This can enhance the valve's performance under different operating conditions.
Stabilizers:
Stabilizers are additives that help protect the PPR material from degradation caused by exposure to heat, light, or oxidative environments. Stabilizers contribute to the long-term stability of the valve.
Antioxidants:
Antioxidants are additives that inhibit the degradation of the PPR material due to oxidation. They help maintain the material's properties over time, especially in applications where the valve is exposed to environmental factors.
UV Stabilizers:
UV stabilizers are added to PPR materials to protect against the harmful effects of ultraviolet (UV) radiation from sunlight. This is particularly relevant for outdoor applications where the valve may be exposed to sunlight.
Impact Modifiers:
Impact modifiers are incorporated to improve the toughness and impact resistance of the PPR material. This is especially important in applications where the valve may be subjected to mechanical stress or impact.
Colorants and Pigments:
Colorants or pigments may be added to the PPR material for aesthetic purposes or to differentiate valves of different specifications. These additives do not typically impact the performance but may influence the appearance of the valve.
Processing Aids:
Processing aids can be used during the manufacturing process to improve the melt flow and processing characteristics of the PPR material. This aids in the fabrication of complex shapes, such as valve components.
Flame Retardants:
In some cases, flame retardants may be included to enhance the fire resistance of the PPR material. This is important in applications where fire safety is a consideration.
The inclusion of additives is carefully considered in the formulation to meet specific performance requirements and industry standards.
