Wholesale PPR Ball Valve with Brass Ball
Home / Product / PPR Fitting / PPR Valve / PPR Ball Valve with Brass Ball
 PPR Ball Valve with Brass Ball
  •  PPR Ball Valve with Brass Ball

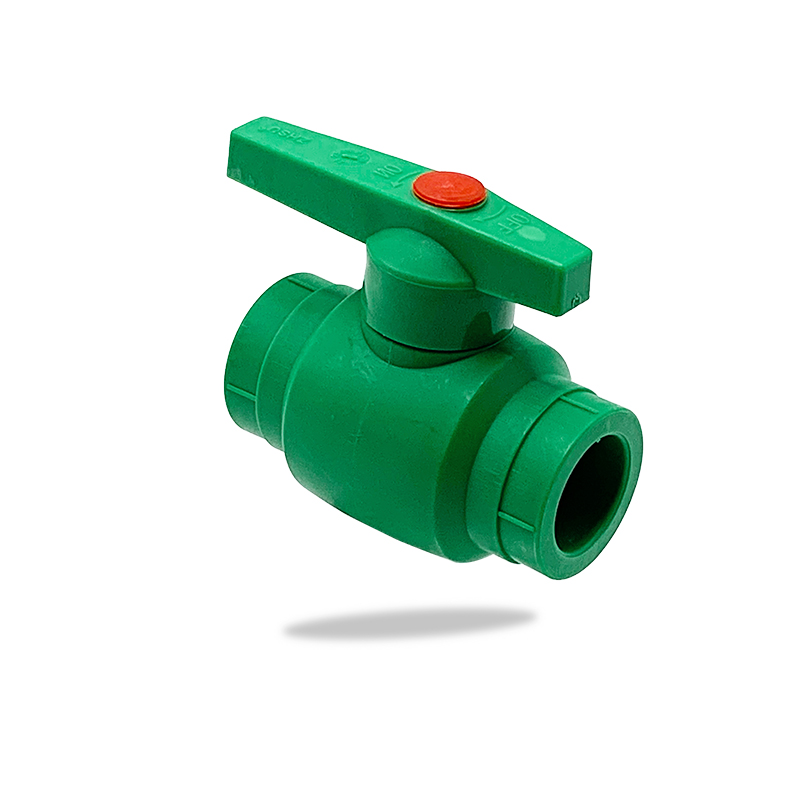

PPR Ball Valve with Brass Ball

ZHSU PPR Ball Valve with Brass Ball's opening and closing part is a solid brass ball with soft sealing, which control the fluid or gas flow through the brass ball inside valve body, the inside brass ball rotates when the valve is open, allowing fluid or gas to pass through,the brass ball rotates to stop the fluid or gas medium when the valve is closed, turning a handle fastened to the valve body opens and closes the valve manually, PPR Ball Valve with Brass Ball has the advantage of compact structure, reliable sealing, simple structure, convenient maintenance, it's sealing surface and spherical surface are often in closed state, not easy to be eroded by medium, easy to operate and maintain,100% shell test and water sealing test before delivery, quality guarateed, be frequently used in heating and cooling systems, hot and cold water delivery systems, and plumbing.
send inquiry
SPECIFICATION CUSTOMIZED SERVICE

Item Name

PPR ball valve with brass ball

Size

20-110mm

Pressure

Pn 1.6Mpa

Body Material

polypropylene random, PPR beta

Inside ball and stem

brass

Colour

Green, gray, white, purple

Connection

hot melting

Standard

DIN8077, DIN8078, ISO16962


Item name

Product Code

Size (mm)

Packing (pc/ctn)

Vol per Ctn (cbm)

Weight (kg/pc)

PPR ball valve with brass ball






RVQ20

20

80

0.0233

0.111

RVQ25

25

54

0.0233

0.166

RVQ32

32

36

0.0233

0.267

RVQ40

40

20

0.0233

0.573

RVQ50

50

12

0.0233

0.790

RVQ63

63

10

0.0233

1.194

RVQ75

75

6

0.0233

1.737

RVQ90

90

4

0.0233

2.676

RVQ110

110

4

0.0233

4.308

About Us
Shanghai Zhongsu Pipe Co., Ltd.

Shanghai Zhongsu Pipe Co.,Ltd established in 2004 with 1.01 billion registration capital, situated in Jinshan district of shanghai china, occupied 70000 square meters. ZHSU specialized in producing PPR pipe, antibacterial PPR pipe, anti UV PPR pipe, PP-RCT pipe, PE-RT pipe, HDPE pipe and fittings with various materials, adopted high technology production line to improve productivity and provide customer with fast delivery time. OEM PPR Ball Valve with Brass Ball Manufacturers and Wholesale PPR Ball Valve with Brass Ball Factory in China. In order to cooperate with national rural drinking water safety project, ZHSU adopted large diameter facility for PE production, our biggest PE pipe diameter reached DN1200mm at present, ZHSU has become one of the manufacturers in china who can produce such large diameter PE pipe.

We adopted German brand Battenfeld-cincinnati production lines for plastic pipes to organize production in strictly accordance with international standards, the procedure from raw material purchasing to finished product delivery is fully under monitoring, passed ISO9001, ISO14001 and OHSAS18001 certification because of perfect management. Wholesale PPR Ball Valve with Brass Ball. Besides we were nominated as ”Shanghai famous brand products, Shanghai high-tech enterprises and Shanghai famous trademarks”.

Certificate Of Honor
  • ISO14001
  • ISO9001
  • ISO45001
  • CNAS Accredited Laboratory Certificate
  • CE-Certificate
  • 2022CEC Certificate - Water Supply Pipe
  • 2022CEC Certificate - Gas Pipe
  • 2021 Measurement Management System Certificate
  • TSG Special Equipment Production Licence New Certificate
Message Feedback
News

Product Knowledge

Does the presence of a brass ball affect the valve's flow control and shut-off capability compared to valves with a fully polypropylene construction?
The presence of a ppr-ball-valve-with-brass-ball valve can affect its flow control and shut-off capability compared to valves with a fully polypropylene construction, but the impact depends on various factors. Here's how it might influence the valve's performance:
Improved Durability: Brass is known for its durability and resistance to wear and tear, which can enhance the longevity of the valve, especially in applications with frequent operation or high-pressure conditions. This durability may contribute to the valve's ability to maintain precise flow control and shut-off capability over time.
Enhanced Sealing: Brass balls often feature precise machining and a smooth surface finish, which can improve the sealing performance of the valve. When the valve is closed, the brass ball creates a tight seal against the valve seat, minimizing the risk of leakage and providing reliable shut-off capability.
Reduced Friction: Brass has lower friction coefficients compared to polypropylene, which may result in smoother operation of the valve and more precise flow control. The reduced friction can also make it easier to open and close the valve, particularly in larger sizes or high-pressure applications.
Temperature and Pressure Considerations: Brass has different temperature and pressure ratings compared to polypropylene. While brass typically has higher temperature and pressure capabilities, it's essential to ensure that the overall design of the valve, including the polypropylene components, can withstand the intended operating conditions without compromising performance.
Chemical Compatibility: Brass may have different chemical compatibility compared to polypropylene. While both materials are generally resistant to a wide range of chemicals, there may be specific fluids or environments where brass is more suitable or vice versa. Understanding the chemical compatibility of the materials used in the valve is crucial for selecting the appropriate valve for the application.
While the presence of a brass ball in a PPR ball valve can offer benefits in terms of durability, sealing performance, and friction reduction, it's essential to consider the specific requirements and operating conditions of the application to determine whether it provides advantages in flow control and shut-off capability compared to valves with a fully polypropylene construction.
