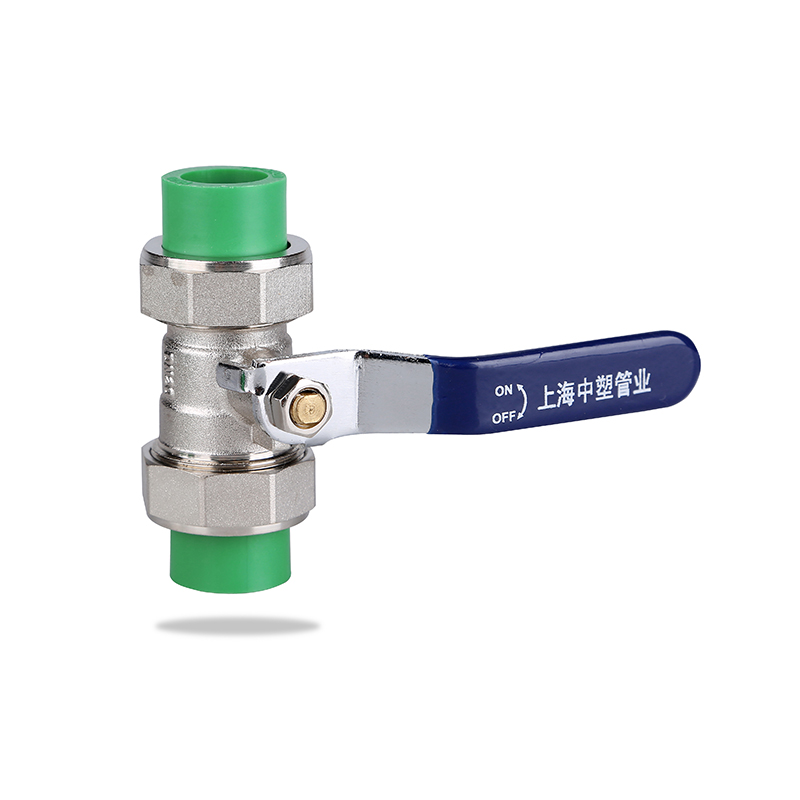

PPR Double Union Ball Valve
ZHSU PPR Double Union Ball Valve consists of a brass material body, brass ball and stem and two socket fusion union ends, it's opening and closing part is a solid brass ball with soft sealing, which controls the fluid or gas flow through the brass ball inside the valve body, the inside brass ball rotates when the valve is open, allowing fluid or gas to pass through, the brass ball rotates to stop the fluid or gas medium when the valve is closed, turning a handle fastened to the valve body opens and closes the valve manually, double union ball valve offers a dependable and effective mean to control the flow of fluid or gas through a piping system and is often simple to use and maintain. Brass was used in the valve's construction because of its high level of corrosion resistance, which can be crucial in plumbing applications where the valve will be in contact with moisture or other corrosive materials. 100% shell test and water sealing test before delivery.
send inquiry
|
Item Name |
PPR double union ball valve |
|
Size |
20-110mm |
|
Pressure |
Pn 1.6Mpa |
|
Body Material |
brass |
|
Two ends material |
Polypropylene random, PPR beta |
|
Inside ball and stem |
brass |
|
Color |
Green, gray, white, purple |
|
Connection |
Hot melting |
|
Standard |
DIN8077, DIN8078 ,ISO16962 |
|
Item name |
Product Code |
Size (mm) |
Packing (pc/ctn) |
Vol per Ctn (cbm) |
Weight (kg/pc) |
|
PPR double union ball valve |
RVU20 |
20 |
64 |
0.0233 |
0.280 |
|
RVU25 |
25 |
54 |
0.0233 |
0.380 |
|
|
RVU32 |
32 |
36 |
0.0233 |
0.625 |
|
|
RVU40 |
40 |
16 |
0.0233 |
1.130 |
|
|
RVU50 |
50 |
8 |
0.0233 |
1.865 |
|
|
RVU63 |
63 |
8 |
0.0233 |
2.370 |
|
|
RVU75 |
75 |
5 |
0.0233 |
3.300 |
|
|
RVU90 |
90 |
3 |
0.0233 |
4.400 |
|
|
RVU110 |
110 |
2 |
0.0233 |
6.500 |
Related Products
Excellent product with exquisite craftsmanship
About Us
Shanghai Zhongsu Pipe Co., Ltd.
Shanghai Zhongsu Pipe Co.,Ltd established in 2004 with 1.01 billion registration capital, situated in Jinshan district of shanghai china, occupied 70000 square meters. ZHSU specialized in producing PPR pipe, antibacterial PPR pipe, anti UV PPR pipe, PP-RCT pipe, PE-RT pipe, HDPE pipe and fittings with various materials, adopted high technology production line to improve productivity and provide customer with fast delivery time. OEM PPR Double Union Ball Valve Manufacturers and Wholesale PPR Double Union Ball Valve Factory in China. In order to cooperate with national rural drinking water safety project, ZHSU adopted large diameter facility for PE production, our biggest PE pipe diameter reached DN1200mm at present, ZHSU has become one of the manufacturers in china who can produce such large diameter PE pipe.
We adopted German brand Battenfeld-cincinnati production lines for plastic pipes to organize production in strictly accordance with international standards, the procedure from raw material purchasing to finished product delivery is fully under monitoring, passed ISO9001, ISO14001 and OHSAS18001 certification because of perfect management. Wholesale PPR Double Union Ball Valve. Besides we were nominated as ”Shanghai famous brand products, Shanghai high-tech enterprises and Shanghai famous trademarks”.
Certificate Of Honor
Message Feedback
News
-
-
In order to avoid the problems of pipe blockage and leakage caused by long-term ...
READ MORE -
In cold regions, Beta PPR pipes usually have certain antifreeze properties, but ...
READ MORE -
Choosing the right HDPE Pipe For Gas to ensure the long-term stability and durab...
READ MORE -
HDPE pipes for water have become a preferred choice for water transportation du...
READ MORE
Product Knowledge
What makes this valve suitable for double union applications, and how does it differ from other ball valves?
The designation ppr double union ball valve in the context of a ball valve typically refers to a design that incorporates union connections on both ends of the valve. This design provides distinct advantages in terms of installation, maintenance, and serviceability. Here's what makes a Double Union Ball Valve suitable for double union applications and how it differs from other ball valves:
Ease of Installation:
The double union design allows for easier installation and removal of the valve from a pipeline without having to disassemble the entire piping system. This is particularly beneficial in applications where quick access to the valve is necessary.
Modularity:
The double union construction facilitates a modular approach to piping systems. Valves can be easily replaced or upgraded without the need to cut or alter the existing pipeline, reducing downtime and labor costs during maintenance.
Accessibility for Repairs:
The union connections on both ends enable easy access to the valve for repairs or replacements. This is advantageous in situations where space constraints or location make it challenging to replace a valve in a traditional, non-union configuration.
Minimized Disruption:
In the event of valve maintenance or replacement, the double union design minimizes disruption to the overall piping system. It allows for isolating the valve without affecting the surrounding piping connections.
Versatility in System Design:
The double union feature offers versatility in system design. It allows for flexible configurations and the ability to add or remove components without extensive reworking of the piping system.
Saves Time and Labor:
When compared to non-union ball valves, the double union design saves time and labor during installation and maintenance tasks. This is particularly valuable in industries or applications where operational downtime must be minimized.
Reduced Risk of Contamination:
During maintenance or replacement, the double union design helps reduce the risk of contamination. The valve can be easily removed without exposing the internal components to external elements or contaminants.
Adaptability to Changing System Needs:
The modular nature of the double union design makes it adaptable to changing system needs. It allows for alterations or expansions in the piping system without requiring significant modifications.
Enhanced Serviceability:
The ability to isolate the valve through the double union connections enhances serviceability. Technicians can work on the valve without affecting the overall functionality of the piping system.
