PPR Female Single Union Ball Valve
  • PPR Female Single Union Ball Valve

PPR Female Single Union Ball Valve

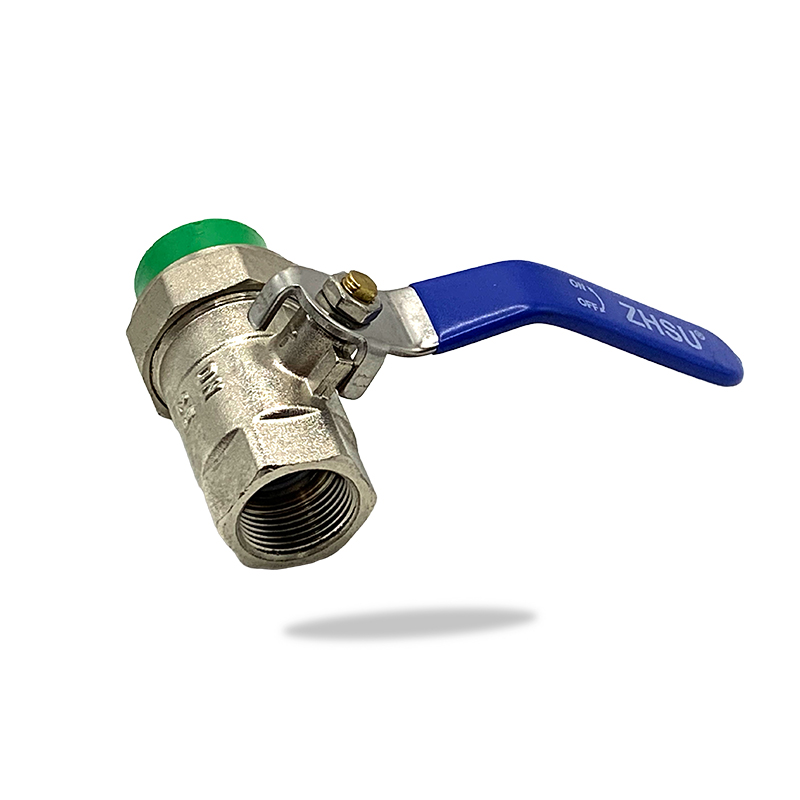

ZHSU PPR Female Single Union Ball Valve is consist of a brass material body with female thread on one end, brass ball and stem and a socket fusion union on the other end, it's opening and closing part is a solid brass ball with soft sealing inside the ball valve body, which control the fluid or gas flow ,a BSP or NPT standard female thread on the end to connect a metal threaded pipe, the other end is smooth and used to connect with unthread same size pipe using ppr welding machine, which is manufactured according to German DIN standards with sizes ranging from 20mm up to 160mm,100% shell test and water sealing test before delivery, quality guarateed, be frequently used in heating and cooling systems, hot and cold water delivery systems, and plumbing.
send inquiry
SPECIFICATION CUSTOMIZED SERVICE

Item Name

PPR female single union ball valve

Size

20-32mm

Pressure

Pn 1.6Mpa

Body Material

brass

One of the ends material

polypropylene random, PPR beta

Inside ball and stem

brass

Colour

Green, gray, white, purple

Connection

BSP or NPT thread and hot melting

Standard

DIN8077, DIN8078, ISO16962


Item name

Product Code

Size (mm)

Packing (pc/ctn)

Vol per Ctn (cbm)

Weight (kg/pc)

PPR female single union ball valve


RVN20

20

96

0.0233

0.250

RVN25

25

54

0.0233

0.350

RVN32

32

36

0.0233

0.590

About Us
Shanghai Zhongsu Pipe Co., Ltd.

Shanghai Zhongsu Pipe Co.,Ltd established in 2004 with 1.01 billion registration capital, situated in Jinshan district of shanghai china, occupied 70000 square meters. ZHSU specialized in producing PPR pipe, antibacterial PPR pipe, anti UV PPR pipe, PP-RCT pipe, PE-RT pipe, HDPE pipe and fittings with various materials, adopted high technology production line to improve productivity and provide customer with fast delivery time. OEM PPR Female Single Union Ball Valve Manufacturers and Wholesale PPR Female Single Union Ball Valve Factory in China. In order to cooperate with national rural drinking water safety project, ZHSU adopted large diameter facility for PE production, our biggest PE pipe diameter reached DN1200mm at present, ZHSU has become one of the manufacturers in china who can produce such large diameter PE pipe.

We adopted German brand Battenfeld-cincinnati production lines for plastic pipes to organize production in strictly accordance with international standards, the procedure from raw material purchasing to finished product delivery is fully under monitoring, passed ISO9001, ISO14001 and OHSAS18001 certification because of perfect management. Wholesale PPR Female Single Union Ball Valve. Besides we were nominated as ”Shanghai famous brand products, Shanghai high-tech enterprises and Shanghai famous trademarks”.

Certificate Of Honor
  • ISO14001
  • ISO9001
  • ISO45001
  • CNAS Accredited Laboratory Certificate
  • CE-Certificate
  • 2022CEC Certificate - Water Supply Pipe
  • 2022CEC Certificate - Gas Pipe
  • 2021 Measurement Management System Certificate
  • TSG Special Equipment Production Licence New Certificate
Message Feedback
News

Product Knowledge

How does the PPR female single union ball valve operate, and what features does it offer for flow control and shut-off capability?
The PPR female single union ball valve operates using a spherical ball with a hole through its center, which can be rotated to control the flow of fluid through the valve. Here's how it operates and the features it offers for flow control and shut-off capability:
Ball Valve Mechanism: The valve features a hollow, perforated ball inside the valve body. When the valve handle is turned, the ball rotates within the body, aligning the hole in the ball with the flow path to allow fluid to pass through, or positioning the ball to block the flow when closed.
Quarter-Turn Operation: PPR female single union ball valves typically use a quarter-turn mechanism, meaning the valve handle only needs to be rotated 90 degrees to open or close the valve fully. This simple operation makes the valve easy to use and provides quick and precise flow control.
Full Flow Path: When the valve is fully open, the hole in the ball aligns perfectly with the flow path, allowing unrestricted flow of fluid through the valve. This design minimizes pressure drop and ensures efficient flow rates, making the valve suitable for a wide range of applications.
Shut-Off Capability: When the valve is closed, the ball rotates perpendicular to the flow path, effectively blocking the passage of fluid through the valve. This shut-off capability allows users to stop the flow of fluid completely, providing reliable isolation and control of the system.
Leak-Free Sealing: PPR female single union ball valves are designed to provide a secure and leak-free seal when closed, preventing fluid from leaking past the valve. The sealing mechanism typically consists of a combination of O-rings and precision-machined surfaces, ensuring tight closure and reliable performance.
Versatility: PPR female single union ball valves are versatile and can be installed in various orientations, including horizontal, vertical, or angled positions. This flexibility allows for easy integration into different plumbing systems and configurations.
Corrosion Resistance: PPR female single union ball valves are resistant to corrosion, making them suitable for use in both corrosive and non-corrosive environments. The polypropylene construction ensures long-term durability and reliability, even in harsh conditions.
The PPR female single union ball valve offers straightforward operation, precise flow control, reliable shut-off capability, and versatile installation options, making it a popular choice for a wide range of plumbing applications.
