PPR Male Single Union Ball Valve
  • PPR Male Single Union Ball Valve

PPR Male Single Union Ball Valve

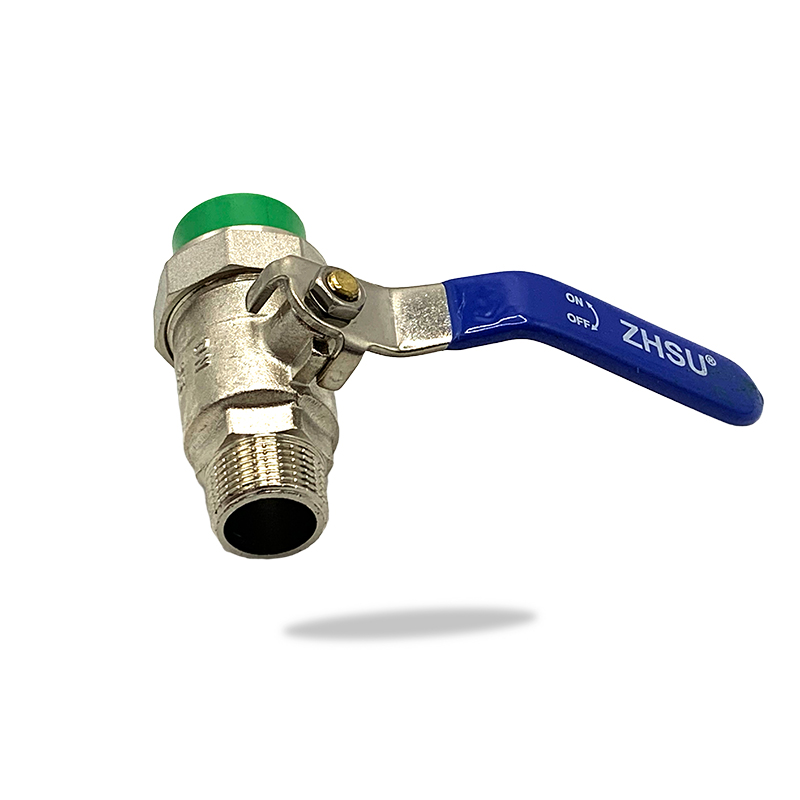

ZHSU PPR Male Single Union Ball Valve is consist of a brass material body with male thread on one end, brass ball and stem and a socket fusion union on the other end, it's opening and closing part is a solid brass ball with soft sealing inside the ball valve body, which control the fluid or gas flow ,a BSP or NPT standard male thread on the end to connect a metal threaded pipe, the other end is smooth and used to connect with unthread same size pipe using ppr welding machine, which is manufactured according to German DIN standards with sizes ranging from 20mm up to 160mm,100% shell test and water sealing test before delivery, quality guarateed, be frequently used in heating and cooling systems, hot and cold water delivery systems, and plumbing.
send inquiry
SPECIFICATION CUSTOMIZED SERVICE

Item Name

PPR male single union ball valve

Size

20-32mm

Pressure

Pn 1.6Mpa

Body Material

brass

One of the ends material

polypropylene random, PPR beta

Inside ball and stem

brass

Colour

Green, gray, white, purple

Connection

BSP or NPT thread and hot melting

Standard

DIN8077, DIN8078, ISO16962


Item name

Product Code

Size (mm)

Packing (pc/ctn)

Vol per Ctn (cbm)

Weight (kg/pc)

PPR male single union ball valve


RVS20

20

96

0.0233

0.260

RVS25

25

54

0.0233

0.360

RVS32

32

36

0.0233

0.615

About Us
Shanghai Zhongsu Pipe Co., Ltd.

Shanghai Zhongsu Pipe Co.,Ltd established in 2004 with 1.01 billion registration capital, situated in Jinshan district of shanghai china, occupied 70000 square meters. ZHSU specialized in producing PPR pipe, antibacterial PPR pipe, anti UV PPR pipe, PP-RCT pipe, PE-RT pipe, HDPE pipe and fittings with various materials, adopted high technology production line to improve productivity and provide customer with fast delivery time. OEM PPR Male Single Union Ball Valve Manufacturers and Wholesale PPR Male Single Union Ball Valve Factory in China. In order to cooperate with national rural drinking water safety project, ZHSU adopted large diameter facility for PE production, our biggest PE pipe diameter reached DN1200mm at present, ZHSU has become one of the manufacturers in china who can produce such large diameter PE pipe.

We adopted German brand Battenfeld-cincinnati production lines for plastic pipes to organize production in strictly accordance with international standards, the procedure from raw material purchasing to finished product delivery is fully under monitoring, passed ISO9001, ISO14001 and OHSAS18001 certification because of perfect management. Wholesale PPR Male Single Union Ball Valve. Besides we were nominated as ”Shanghai famous brand products, Shanghai high-tech enterprises and Shanghai famous trademarks”.

Certificate Of Honor
  • ISO14001
  • ISO9001
  • ISO45001
  • CNAS Accredited Laboratory Certificate
  • CE-Certificate
  • 2022CEC Certificate - Water Supply Pipe
  • 2022CEC Certificate - Gas Pipe
  • 2021 Measurement Management System Certificate
  • TSG Special Equipment Production Licence New Certificate
Message Feedback
News

Product Knowledge

How does the PPR Male Single Union Ball Valve ensure a safe, leak-free connection?
The PPR Male Single Union Ball Valve ensures a safe and leak-free connection through several design features and mechanisms:
Sealing Surfaces: The valve's components, including the ball and valve seat, are precisely machined to create tight sealing surfaces. When the valve is closed, the ball presses against the valve seat, forming a secure seal that prevents fluid from leaking through the valve.
Compression Fittings: The male single union design of the valve typically includes compression fittings that securely hold the valve in place within the piping system. These fittings create a tight connection between the valve and the pipes, minimizing the risk of leaks at the connection points.
O-ring Seals: Many PPR male single union ball valves incorporate O-ring seals at critical sealing points, such as around the valve stem or within the valve body. These O-ring seals provide additional protection against leaks by creating a flexible, watertight barrier between moving parts and stationary components.
Threaded Connections: In some cases, threaded connections may be used to secure the valve to the piping system. Properly threaded connections, when tightened to the appropriate torque specifications, create a reliable seal that prevents leaks from occurring along the threaded joints.
Smooth Internal Passages: The interior passages of the valve are designed to be smooth and free of irregularities or rough surfaces that could disrupt fluid flow or compromise sealing. Smooth internal passages help ensure consistent sealing performance and minimize the risk of leaks due to turbulence or blockages.
Quality Construction: PPR male single union ball valves are typically manufactured to high-quality standards using durable materials and precision engineering techniques. This ensures that the valve components fit together smoothly and securely, minimizing the chance of leaks due to manufacturing defects or poor construction.
The combination of precise machining, compression fittings, O-ring seals, threaded connections (if applicable), smooth internal passages, and quality construction ensures that PPR male single union ball valves provide a safe, reliable, and leak-free connection in plumbing systems. Regular maintenance and inspection can help ensure continued performance and identify any issues that may arise over time.
