PPR Male Threaded Union
  • PPR Male Threaded Union

PPR Male Threaded Union

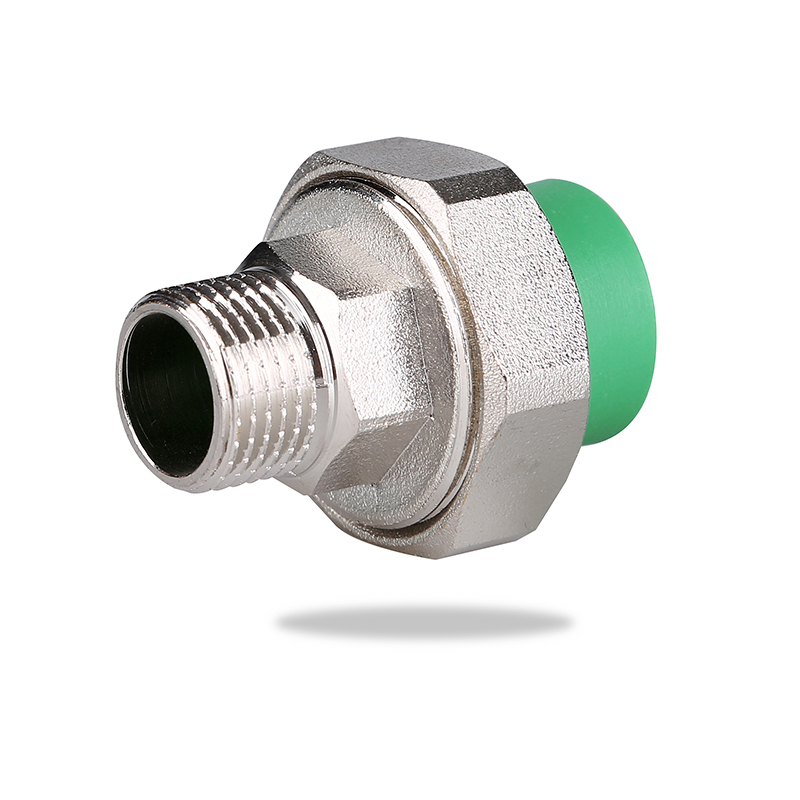

PPR male Threaded Union has a threaded connection on one end that can be connected to a female threaded fitting or valve and the other end socket that can be used to enter a PPR pipe. A nut on the union can be tightened to seal the connection and make it watertight, PPR male union is made to join two PPR pipes in a straight line and make the piping system simple to disassemble and reassemble, has the advantage of rust resistance, heavyweight brass inserts and convenient construction, being produced by advanced production process, Max. size reached 63 x 2'' and PN2.5 Mpa design pressure.
send inquiry
SPECIFICATION CUSTOMIZED SERVICE

Item Name

PPR male threaded Union

Size

20-63mm

Pressure

Pn 2.5Mpa

Material

polypropylene random, PPR beta

Inserts

brass

Color

Green, gray, white, purple

Connection

BSP, NPT thread

Standard

DIN8077, DIN8078 ,ISO16962


Item name

Product Code

Size (mm)

Packing (pc/ctn)

Vol per Ctn (cbm)

Weight (kg/pc)

Male threaded Union







RUW20

20×1/2"

200

0.0233

0.102

RUW25

25×3/4"

150

0.0233

0.137

RUW32

32x1"

100

0.0233

0.206

RUW40

40x1-1/4"

48

0.0233

0.394

RUW50

50x1-1/2"

32

0.0233

0.646

RUW63

63x2"

24

0.0233

1.023

About Us
Shanghai Zhongsu Pipe Co., Ltd.

Shanghai Zhongsu Pipe Co.,Ltd established in 2004 with 1.01 billion registration capital, situated in Jinshan district of shanghai china, occupied 70000 square meters. ZHSU specialized in producing PPR pipe, antibacterial PPR pipe, anti UV PPR pipe, PP-RCT pipe, PE-RT pipe, HDPE pipe and fittings with various materials, adopted high technology production line to improve productivity and provide customer with fast delivery time. OEM PPR Male Threaded Union Manufacturers and Wholesale PPR Male Threaded Union Factory in China. In order to cooperate with national rural drinking water safety project, ZHSU adopted large diameter facility for PE production, our biggest PE pipe diameter reached DN1200mm at present, ZHSU has become one of the manufacturers in china who can produce such large diameter PE pipe.

We adopted German brand Battenfeld-cincinnati production lines for plastic pipes to organize production in strictly accordance with international standards, the procedure from raw material purchasing to finished product delivery is fully under monitoring, passed ISO9001, ISO14001 and OHSAS18001 certification because of perfect management. Wholesale PPR Male Threaded Union. Besides we were nominated as ”Shanghai famous brand products, Shanghai high-tech enterprises and Shanghai famous trademarks”.

Certificate Of Honor
  • ISO14001
  • ISO9001
  • ISO45001
  • CNAS Accredited Laboratory Certificate
  • CE-Certificate
  • 2022CEC Certificate - Water Supply Pipe
  • 2022CEC Certificate - Gas Pipe
  • 2021 Measurement Management System Certificate
  • TSG Special Equipment Production Licence New Certificate
Message Feedback
News

Product Knowledge

How are the male threads protected during transportation and storage to prevent damage?
The protection of male threads during transportation and storage is crucial to ensure the integrity and functionality of PPR Male Threaded Unions.Implement specific measures to prevent damage to the threads. Here are common practices to protect male threads:
Thread Protectors:
Thread protectors are caps or covers designed to fit over the male threads of the union. These protectors shield the threads from physical damage, impact, and contaminants during transportation and storage.
Thread protectors are typically made from durable materials such as plastic or rubber. They are securely fitted over the male threads, providing a barrier against potential hazards.
Plastic Caps or End Caps:
Plastic caps or end caps are another form of protection for male threads. These caps are molded to fit the specific dimensions of the male threads and are often made from materials resistant to wear and tear.
Plastic caps serve as a barrier against dust, debris, and other environmental factors that could compromise the integrity of the threads.
Threaded Covers or Shields:
Threaded covers or shields are protective devices that encase the entire threaded portion of the male threads. These can be screw-on or snap-on covers that provide a robust protective layer.
Threaded shields are designed to withstand handling, stacking, and other stresses encountered during transportation and storage.
Packaging Materials:
The packaging of PPR Male Threaded Unions plays a significant role in protecting the threads. Use cushioning materials such as foam, bubble wrap, or other soft materials within the packaging to prevent direct contact with external surfaces.
Proper packaging helps absorb shocks, vibrations, and impacts that could potentially damage the male threads.
Individual Packaging:
Individually package PPR Male Threaded Unions, ensuring that each unit is enclosed in its protective wrapping or container. This practice adds an extra layer of protection and minimizes the risk of abrasion or friction between individual components.
Storage Guidelines:
Provide guidelines for proper storage conditions to prevent damage to the male threads. This may include recommendations for temperature, humidity, and protection from direct sunlight or exposure to harsh environmental conditions.
Identification Labels:
Identification labels or markings on the packaging may indicate the presence of male threads and provide instructions for handling to avoid damage. This information helps ensure that users and handlers are aware of the threaded components within the packaging.
